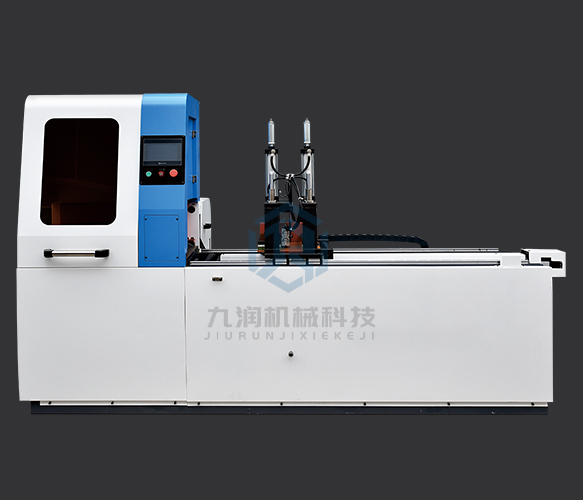

JR-455CNC双伺服横切全自动数控铝切机
机型JR-455CNC伺服全自动铝切机锯切角度90°最大锯切圆管125mm最大锯切方管110*110mm锯切圆棒能力110mm主轴转速3600rpm主电机功率4KW锯片规格355-455伺服电机功率0.75KW单次送料行程600-700mm送料精度±0.05mm送料速度200mm/s所需空气气压6-8kg/cm2设备尺寸1950*1300*2000mm设备重量1000KGJR-455CNC铝切机特点：JR-455CNC适
在线询价
产品详情
机型Model | JR-455CNC | JR-505CNC | JR-610CNC | JJR-750CNC |
| 主电机功率Cutting motor power | 5.5KW | 5.5KW | 7.5KW | 11KW |
| 主轴转速Spindle speed | 0-3000rpm | 0-2800rpm | 0-2200rpm | 0-100rpm |
| 锯片规格Saw blade specifications | φ305-φ455mm | φ355-φ505mm | φ355-φ610mm | φ455-φ710mm |
| 切割角度Cutting angle | 90° | 90° | 90° | 90° |
| 最大锯切高度Maximum sawing height | 125mm | 155mm | 210mm | 270mm |
| 最大锯切宽度Maximum sawing width | 360mm | 420mm | 470mm | 550mm |
| 电压Voltage | 国内380V 50HZ 国外依客户所需定制Domestic 380V 50HZ, customized according to customer needs overseas | |||
| 切割精度Cutting accuracy | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm |
| 所需空压Required air pressure | 5-8kg/cm² | 5-8kg/cm² | 5-8kg/cm² | 5-8kg/cm² |
| 送料伺服电机功率Feeding servo motor power | 0.85KW | 1KW | 1.3KW | 1.8KW |
| 进刀伺服电机功率Feed servo motor power | 1.3KW | 1.3KW | 1.3KW | 1.8KW |
| 出、入料架长度Length of infeed and outfeed racks | 依客户所需定制Customized accordingtocustomer needs | |||
| 吸尘器功率Vacuum cleaner power | 3KW | 4KW | 4KW | 4KW |
| 单次送料最大行程Maximum single feeding stroke | 1000mm | 1000mm | 1000mm | 1200mm |
| 机器尺寸Machine size | 2800*1600*1900mm | 3000*1800*2100mm | 3200*2000*2300mm | 3400*2200*2500mm |
| 重量Weight | 1.35T | 1.6T | 1.8T | 2T |
| 适用材料Applicable materials | 适合锯切新能源汽车零部件、散热片、铝材、铜材、pvc、塑钢材料、电木板、亚克力塑胶、铁氟龙、蜂巢板、木板等非铁金属材料Suitable for sawing new energy vehicle parts, heat sinks, aluminum, copper, PVc, plastic steel, bakelite, acrylic plastic, PTFEhoneycomb board, wood board and other non-ferrous metal materials | |||
