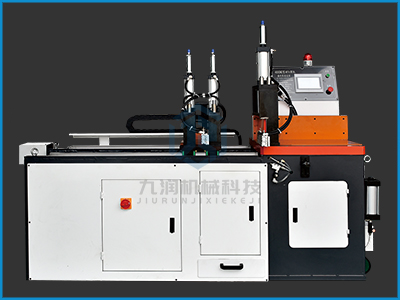

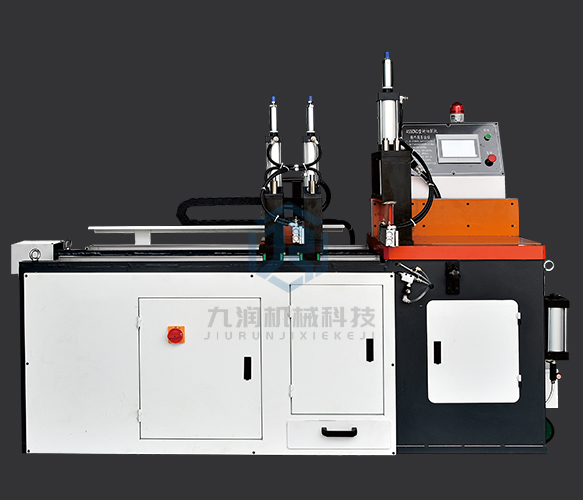

JR-455CNC全自动数控线轨铝切机
机型ModelJR-455YJR-505YJR-610YJR-850Y主电机功率Cutting motor power4KW5.5KW7.5KW11KW主轴转速Spindle speed2900rpm2900rpm2200rpm2200rpm锯片规格Saw blade specificationsφ305-φ455mmφ355-φ505mmφ405-φ610mmφ405-φ850mm切割角度Cutting angle90°90°90°90°最大锯切高度Maximum sawing height125mm150mm210m
在线询价
产品详情
机型Model | JR-455Y | JR-505Y | JR-610Y | JR-850Y |
| 主电机功率Cutting motor power | 4KW | 5.5KW | 7.5KW | 11KW |
| 主轴转速Spindle speed | 2900rpm | 2900rpm | 2200rpm | 2200rpm |
| 锯片规格Saw blade specifications | φ305-φ455mm | φ355-φ505mm | φ405-φ610mm | φ405-φ850mm |
| 切割角度Cutting angle | 90° | 90° | 90° | 90° |
| 最大锯切高度Maximum sawing height | 125mm | 150mm | 210mm | 325mm |
| 最大锯切宽度Maximum sawing width | 360mm | 480mm | 500mm | 600mm |
| 锯切能力圆形 | 125mm | 155mm | 210mm | 300mm |
| 锯切能力方形 | 120*120mm | 145*145mm | 190*190mm | 280*280mm |
| 电压Voltage | 国内380V 50HZ国外依客户所需定制Domestic380V 50HZ,customized according to customer needs overseas | |||
| 切割精度Cutting accuracy | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm |
| 所需空压Required air pressure | 5-8kg/cm² | 5-8kg/cm² | 5-8kg/cm² | 5-8kg/cm² |
| 机器尺寸Machine size | 1500*800*1600mm | 1600*800*1800mm | 1700*1000*1900mm | 1900*1050*2000mm |
| 重量Weight | 0.45T | 0.65T | 0.8T | 1.2T |
| 适用材料Applicable materials | 适合锯切新能源汽车零部件、散热片、铝材、铜材、pvc、塑钢材料、电木板、亚克力塑胶、铁氟龙、蜂巢板、木板等非铁金属材料 Suitable for sawing new energy vehicle parts, heat sinks, aluminum, copper, PVC, plastic steel, bakelite, acrylic plastic, PTFE honevcomb board, wood board and other non-ferrous metal materials | |||
